Choosing and Building a Charging Infrastructure That Works For You.

Once the roadmap is set, the planning and building begins. Like any large construction project, many things must fall into place. From choosing the charging equipment to selecting the contractors, the decisions can feel weighty. That’s why our Charging team will be by your side throughout the process connecting and coordinating with local partners to bring a charging solution tailored to your needs.

Available Charging Services

Concept Design
Project Management & Implementation

Concept Design

Using the roadmap, our charging team will help you select appropriate chargers based on your energy requirements and routes. We’ll then help you assemble an expert construction project team including contractor, build-out and electrical roles as needed. With our strategic partners, we will work with you to assist with security and lighting – not to mention the paperwork like permitting. The idea is to take as much off your plate as possible so that the transition is a smooth one.

Project Management & Implementation

It’s finally time for the shovels to hit the ground. And our team will be there to supervise the installation of chargers and act as the main point of contact between multiple vendors and utilities.

Charging Speeds

Charging speeds will vary based on the type of electric vehicle supply equipment (ESVE) you choose and on environmental factors such as temperature. Our trusted advisors can help determine what charging speeds you can expect.

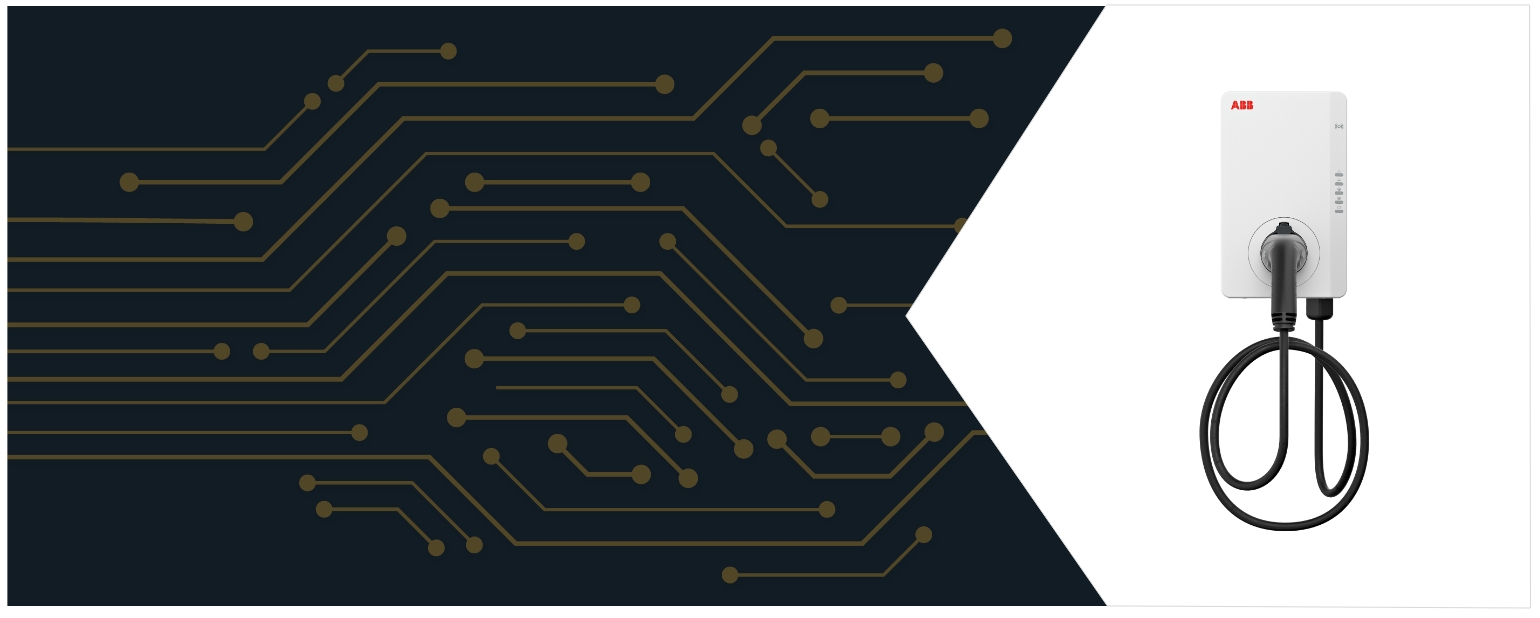

LEVEL 2 – ABB Terra Wallbox

This charging solution can be used for fleet operations that have longer charge times and is also recommended for diagnostic activities. It is very compact and can be installed in most fleet garages or bays.

ABB Terra AC Wallbox Specs:

Input Voltage - 240 V
Maximum Output Power - AC 80-amps
Number of outputs - 1
Wifi or Gigabit Ethernet, Cellular
Energy Star Certified

Key Benefits & Features:
Estimated charge time for 189 kWh Lithium Iron Phosphate* battery: 12 hours**
Estimated charge time for 284 kWh battery: 18 hours**

Case enclosure rated for outdoor use
Compact and easy to install

*210 kWh powertrain battery option with 12% held for base charge protection. Actual range is based on environmental conditions, driving behaviors, etc.
**20% to 100% state of charge, room temperature current production CATL LFP batteries 120 kW DCFC

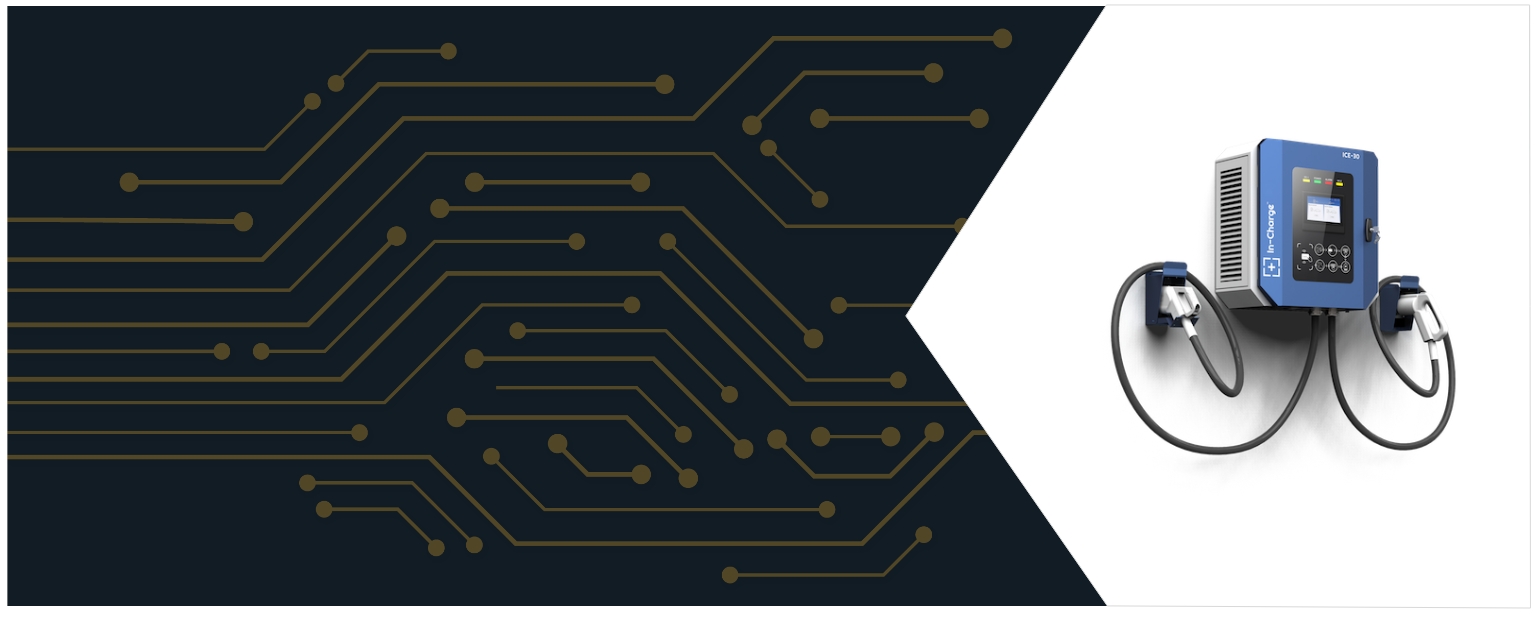

30 KW DC FAST CHARGER

The 30 kW is a compact, fast-charging DC unit capable of charging with one or two connectors. This DC wallbox is designed for easy wall mounting or attaching to a pedestal. This 30 kW charger is easy to operate with an intuitive touchscreen display and is ideal for fleet charging as well as a variety of parking applications where shorter charge times are necessary.

Specifications:

Max Power Output: 30 kW
Output Voltage Range: 150 to 1000 Vdc
Cable Options: CCS1 Connector - Option of 16ft or 25ft cables (25 ft recommended)
Facility Power Requirements (Volts): 480V 3-phase
Facility Power Requirements (Amps)*: 50

*per charger

Key Benefits & Features:
Estimated charge time for 189 kWh Lithium Iron Phosphate* battery: 6 hours**
Estimated charge time for 284 kWh battery: 9 hours**

User-friendly control interface allows for access management via PIN or RFID accessibility
OCPP 1.6 standard supports interoperability across back-end platforms
LTE modem and LAN
TUV certification to UL 2202 to ensure safety
480V 3-phase input for high-efficiency conversion
DIN 70212 and ISO 15118-2 protocol supported
Hot galvanized steel, plastic facade and tempered glass screen construction ensures longevity

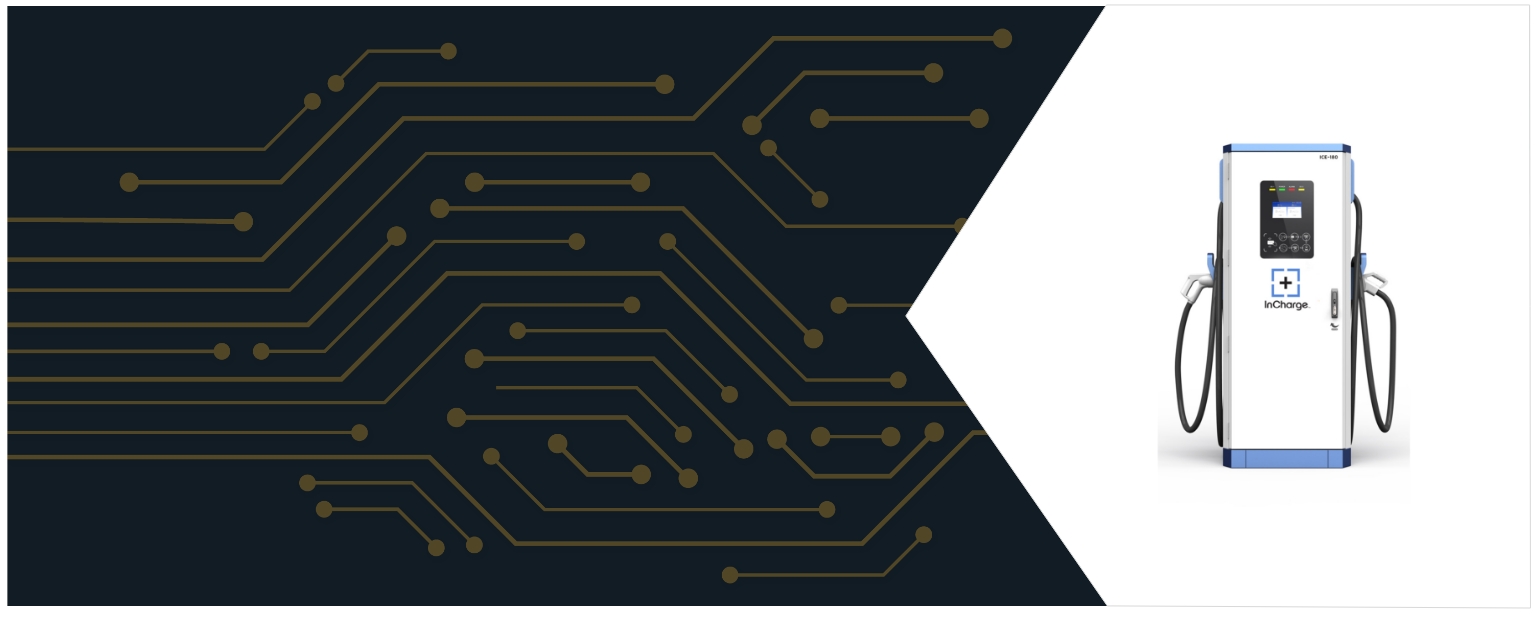

120 KW DC FAST CHARGER

Designed for a quick recharge during the day, the 120 kW DC fast charger can fill a 210 kW battery from 20% to 100% in about an hour and a half. This DC All- in-One is designed to be easy to operate and is ideal for a variety of parking applications where DC charging is needed in minimal space.

Specifications:

Max Power Output: 120 kW / 189 kWh Lithium Iron Phosphate battery* – 1.5 hours / 284 kWh Lithium Iron Phosphate battery* - 3 Hours
Output Voltage Range: 150 to 1000Vdc
Cable Options: CCS1 Connector, CHAdeMO
Facility Power Requirements (Volts): 480V 3 Phase
Facility Power Requirements (Amps)*: ???

*per charger

Key Benefits & Features:

150 to 1000Vdc output voltage range supports new high voltage DC charging voltages
120kW rated output power
User friendly control interface allows for PIN or RFID accessibility
Tempered glass touchscreen LCD display for added durability and daylight readability
OCPP 1.6 standard supports integration into In-Control, In-Charge’s EVSE management platform
LTE Modem and LAN for connectivity to In-Control
Compact design for space saving power-to-footprint ratio
TUV certification to UL 2202 to ensure safety
480V 3-phase input for high efficiency conversion
TUV Certified

*210 kWh powertrain battery option with 10% held for base charge protection. Actual range is based on environmental conditions, driving behaviors, etc.
**20% to 100% state of charge, room temperature current production CATL LFP batteries 120 kW DCFC

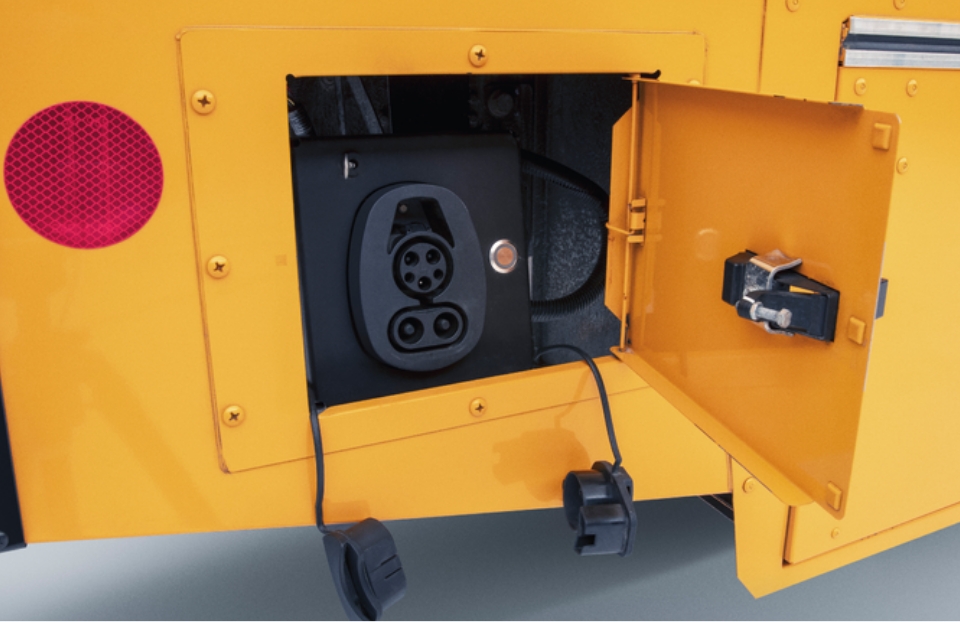

Public Charging

While our goal when planning would be for your fleet to have all the charging they need at your school’s charging depot, there may be times when a bus needs to charge in public. In these cases, here are a few things to consider:

Look for a charger with CCS1 connectors
Look for a charger with at least 700 Volts
Make sure there is enough room to park near the charger

Strategic Partnerships

Making the switch to electric isn’t as easy as plugging your electric school bus into the nearest outlet. To take advantage of all the benefits of electric vehicles and to ensure the best possible experience, it’s important to develop a plan tailored to your specific needs and future goals. Our discovery workshops are designed to do just that. Working together, we’ll craft an EV Roadmap and work with our strategic partners to identify short term and long term goals, the steps that need to be taken to ensure success and uptime when your vehicle is delivered. As your single point of contact, we’ll be with you throughout the entire process.

OFFERINGS

Let's Get You Plugged In

BOOK A CONSULTATION

Find a Dealer Near You

Locate Dealer

A COMPLETE TELEMATICS SOLUTION

OnCommand^® Connection transforms vehicle data into critical insights that help drive greater uptime and reduce total cost of ownership.

LEARN MORE

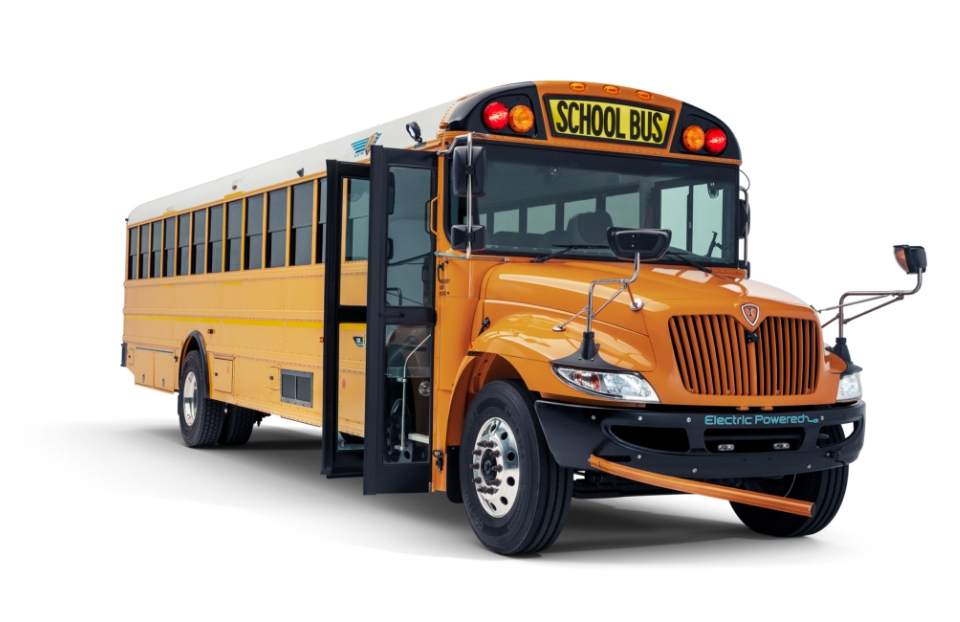

ELECTRIC CE^™ SERIES PRODUCT PAGE
